Results 2

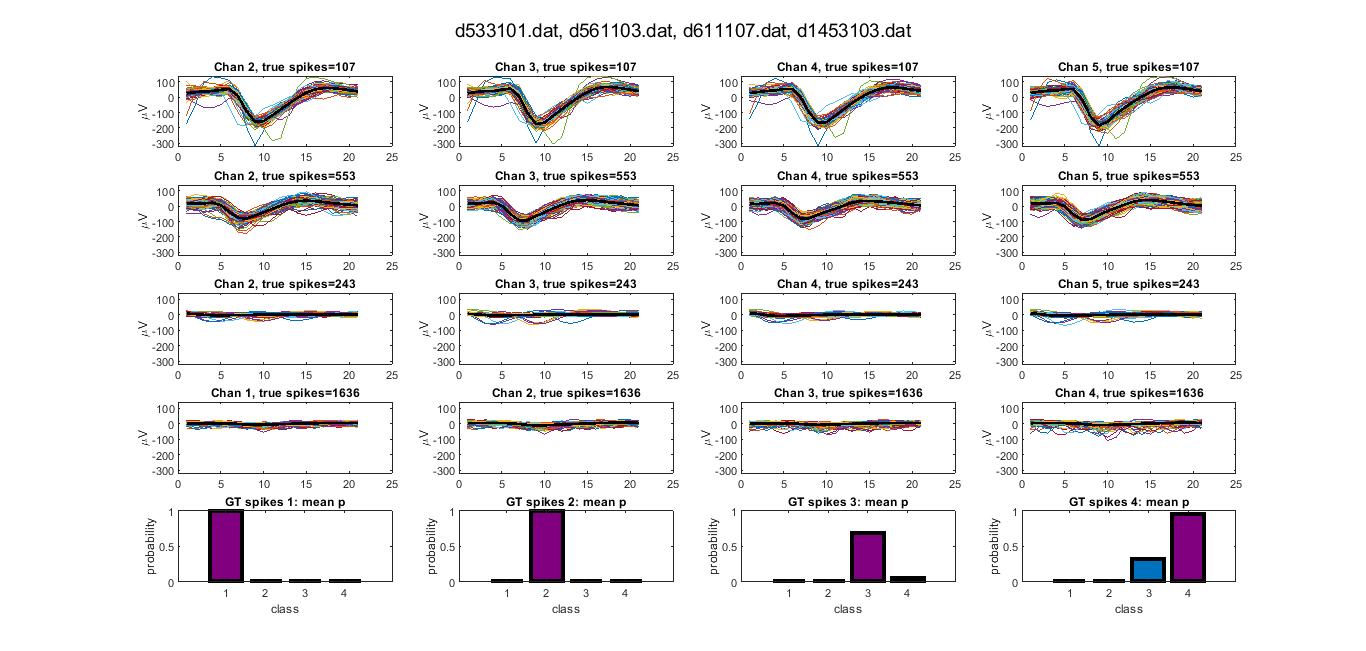

hc-1, data from four experiments
Four experiments, spike waveforms recorded on four channels per intracellular spike times (GT = ground truth).
All waveform plots in the same row belong to the same experiment and class.
Class 1: d533101.dat
Class 2: d561103.dat
Class 3: d611107.dat
Class 4: d1453103.dat

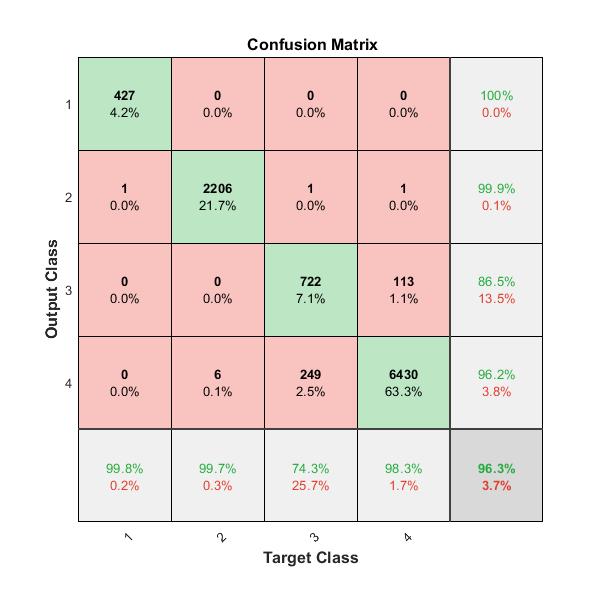

Although these class 3 and 4 waveforms are not distinguishable to the human eye,
the neural network appears to do a surprisingly good job of classifying them in a
test set after being trained on examples, but in reality this training set is biased
by the number examples in class 3 (243 per channel) versus class 4 (1636 per channel).

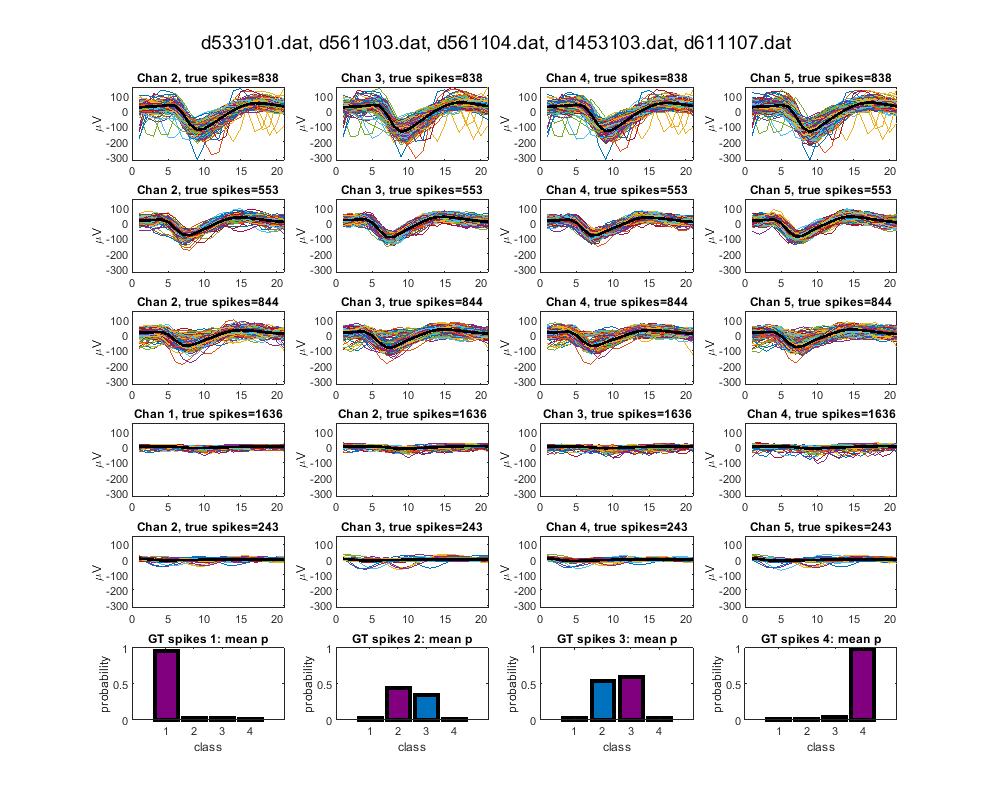

Using NN with 10 artificial neurons to classify extracelluar spike waveforms from biological neurons.
Class 1: d533101.dat
Class 2: d561103.dat
Class 3: d561104.dat
Class 4: d1453103.dat
Class 5: d611107.dat (new data from a separate experiment)

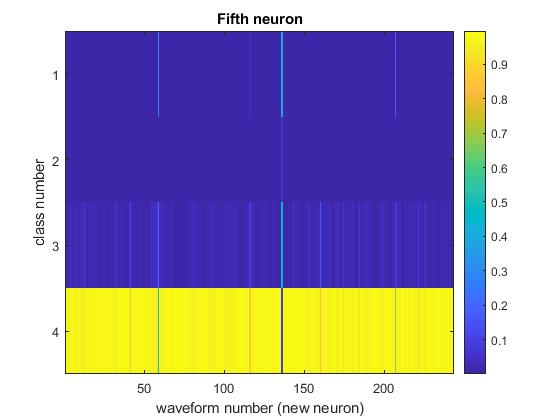

The new class 5 waveforms are in row 5 in the figure below.
These waveforms were not used as training examples, and yet
they were "recognized" as class 4 waveforms ... not surprising.
hc-1, data from five experiments
